Implementing Signature Capture
You need to provide a UI for signature capture. The SDK tell you which method to show in the
actionRequired
block.
actionRequired:^(MPTransactionProcess *process,
                            MPTransaction *transaction,
                            MPTransactionAction action,
                            MPTransactionActionSupport *support)
{
    switch (action) {
        case MPTransactionActionCustomerSignature: {
            NSLog(@"show a UI that let's the customer provide their signature!");
            // In a live app, this image comes from your signature screen
            UIGraphicsBeginImageContext(CGSizeMake(1, 1));
            UIImage *capturedSignature = UIGraphicsGetImageFromCurrentImageContext();
            UIGraphicsEndImageContext();

            [process continueWithCustomerSignature:capturedSignature verified:YES];
            break;
        }
        case MPTransactionActionCustomerIdentification: {
            // always return NO here
            [process continueWithCustomerIdentityVerified:NO];
            break;
        }
        default: {
            break;
        }
    }
}

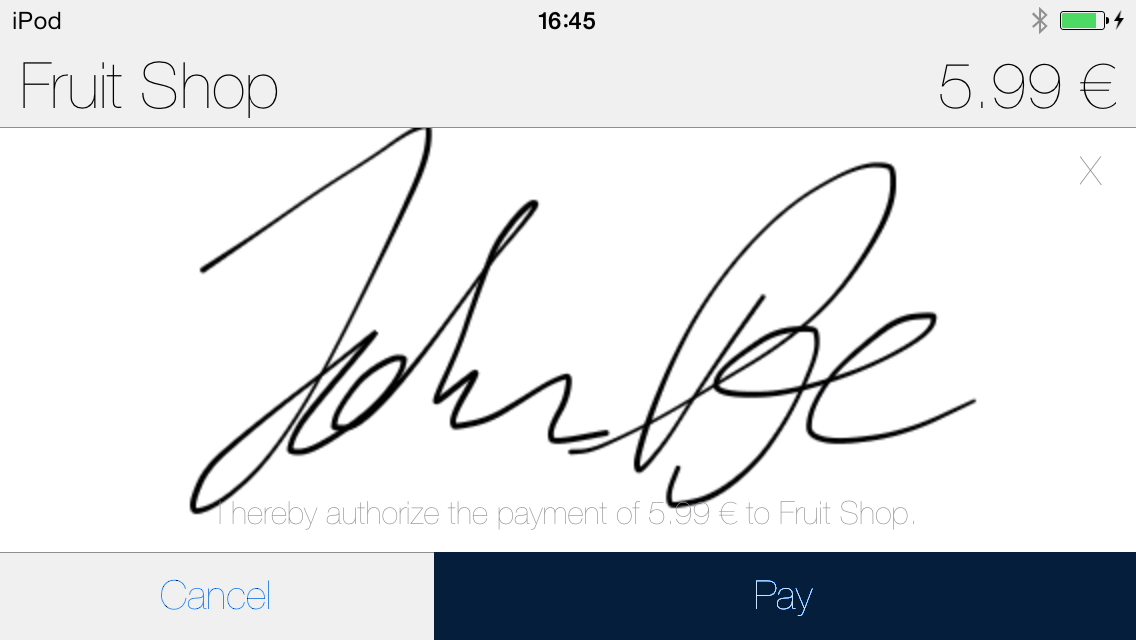

Capturing the Signature
The merchant hands the device to the customer. The customer either signs on the screen and approves the payment, or cancels the transaction. If the customer signs, the merchant compares the signature on the screen and on the card. You can use our open source signature screen. After collecting the signature, continue the transaction:
[process continueWithCustomerSignature:capturedSignature verified:YES];
Make sure to add a
Cancel
 button to your UI to enable the shopper to abort the transaction. If the customer presses
Cancel
. continue the transaction like this:
[process continueWithCustomerSignature:nil verified:NO];
Implementing Signature Capture
You need to provide UI for signature capture. The SDK tells you which method to show by calling the
onCustomerSignatureRequired
 or the
onCustomerVerificationRequired
 on your
TransactionProcessListener
:
@Override
public void onCustomerSignatureRequired(TransactionProcess process,
                                        Transaction transaction) {
    // in a live app, this image comes from your signature screen
    Bitmap.Config conf = Bitmap.Config.ARGB_8888;
    Bitmap bm = Bitmap.createBitmap(1, 1, conf);
    // Submit the signature digitally as part of the transaction
    byte[] signature = SignatureHelper.byteArrayFromBitmap(bm);
    process.continueWithCustomerSignature(signature, true);

    // Or alternatively if you would like to collect the signature on the printed receipt
    // process.continueWithCustomerSignatureOnReceipt();
}

@Override
public void onCustomerVerificationRequired(TransactionProcess process,
                                           Transaction transaction) {
    // always return false here
    process.continueWithCustomerIdentityVerified(false);
}
}
The SDK will compress each signature image that you send. To avoid errors during the compression process because of large signature images or unsupported image formats. we recommend the submitted signature images follow these guidelines:
  • Dimensions similar to the target image size of 960x720 pixels
  • JPEG or PNG image format
  • Greyscale image
If the submitted signature image causes an error (due to unsupported image format or size), that will result in the TRANSACTION_ACTION_ERROR error type.

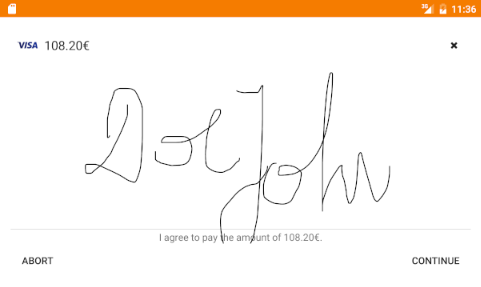

Capturing the Signature
The merchant hands the device to the customer. The customer either signs on the screen and approves the payment, or cancels the transaction. If the customer signs, the merchant compares the signature on the screen and on the card.
